NORTH STREET

2017

‘A cylindrical volume is then subtracted, not only to form a central garden, but to maximise usable landscape while minimising the length of new façade.’

The project brings together a couple and a mother and daughter to construct a self-contained secondary dwelling, while renovating the existing kitchen and living areas. A deck and an outdoor, undercover laundry complete the brief. Two of the clients, the couple, are established landscape architects, bringing a particular focus to the relationship between building and garden.

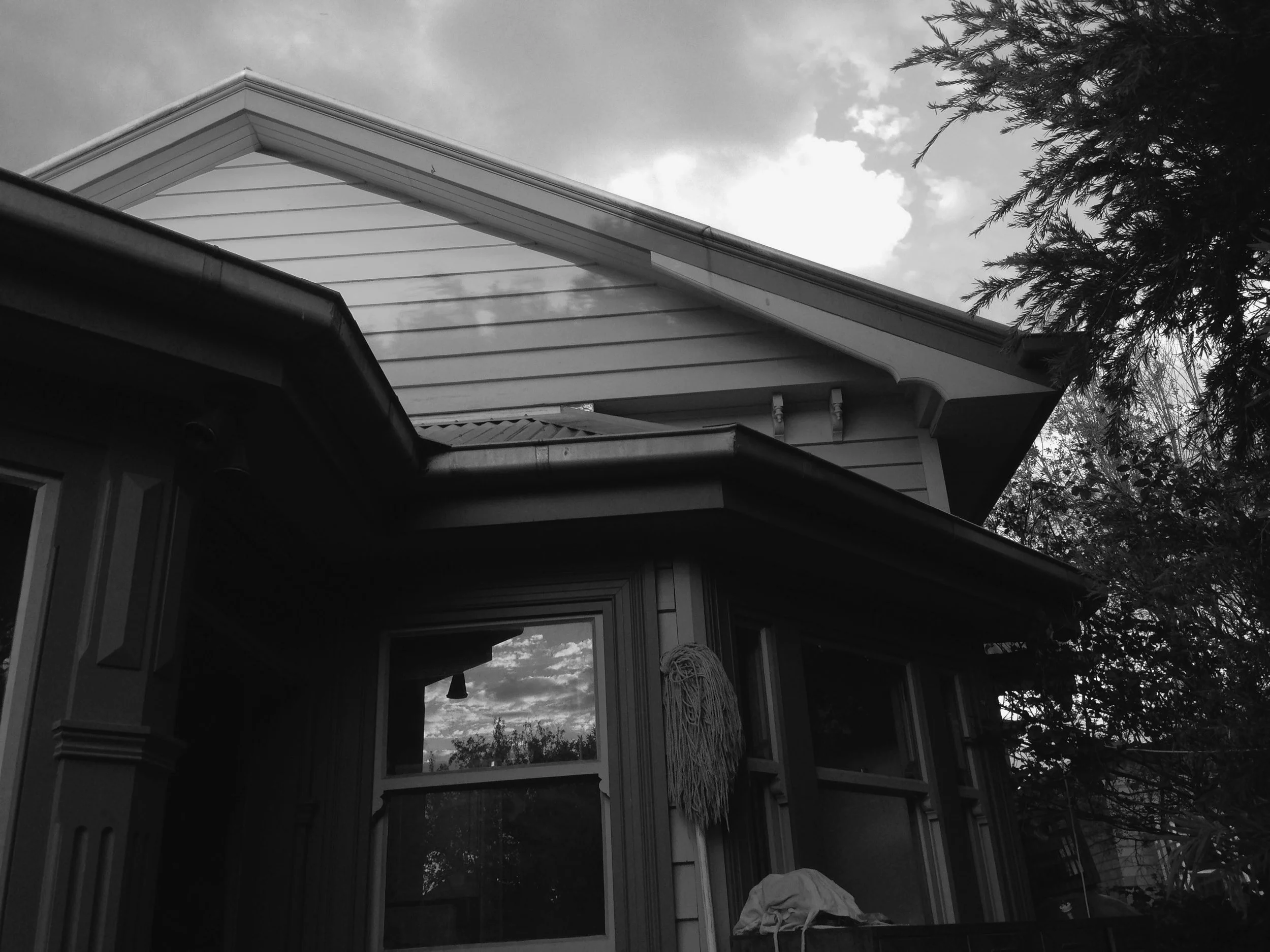

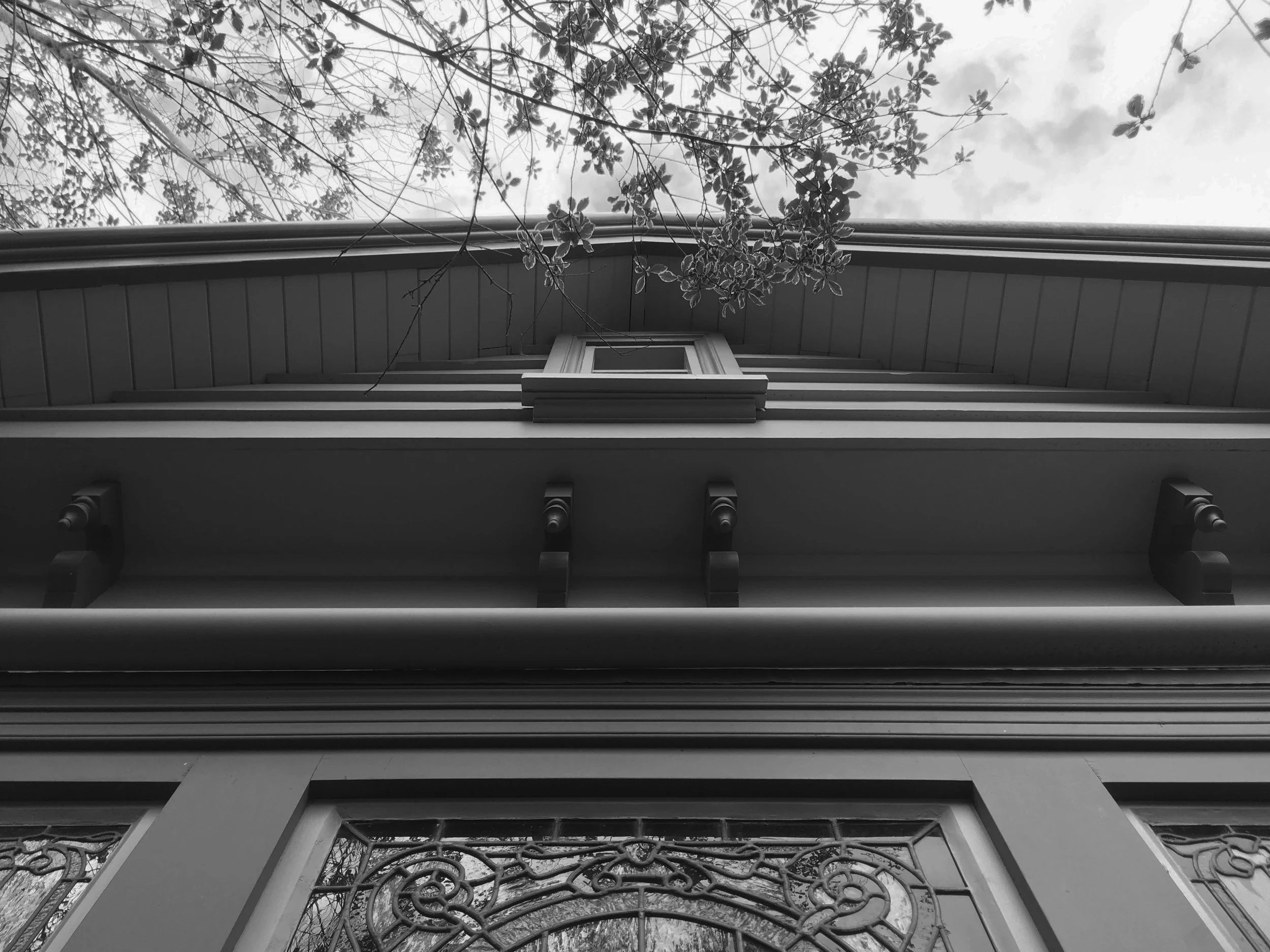

The existing house, previously renovated in a “Victorian style,” was structurally sound but defined by a series of incremental additions, resulting in an overly complex roof form. This condition became the point of departure.

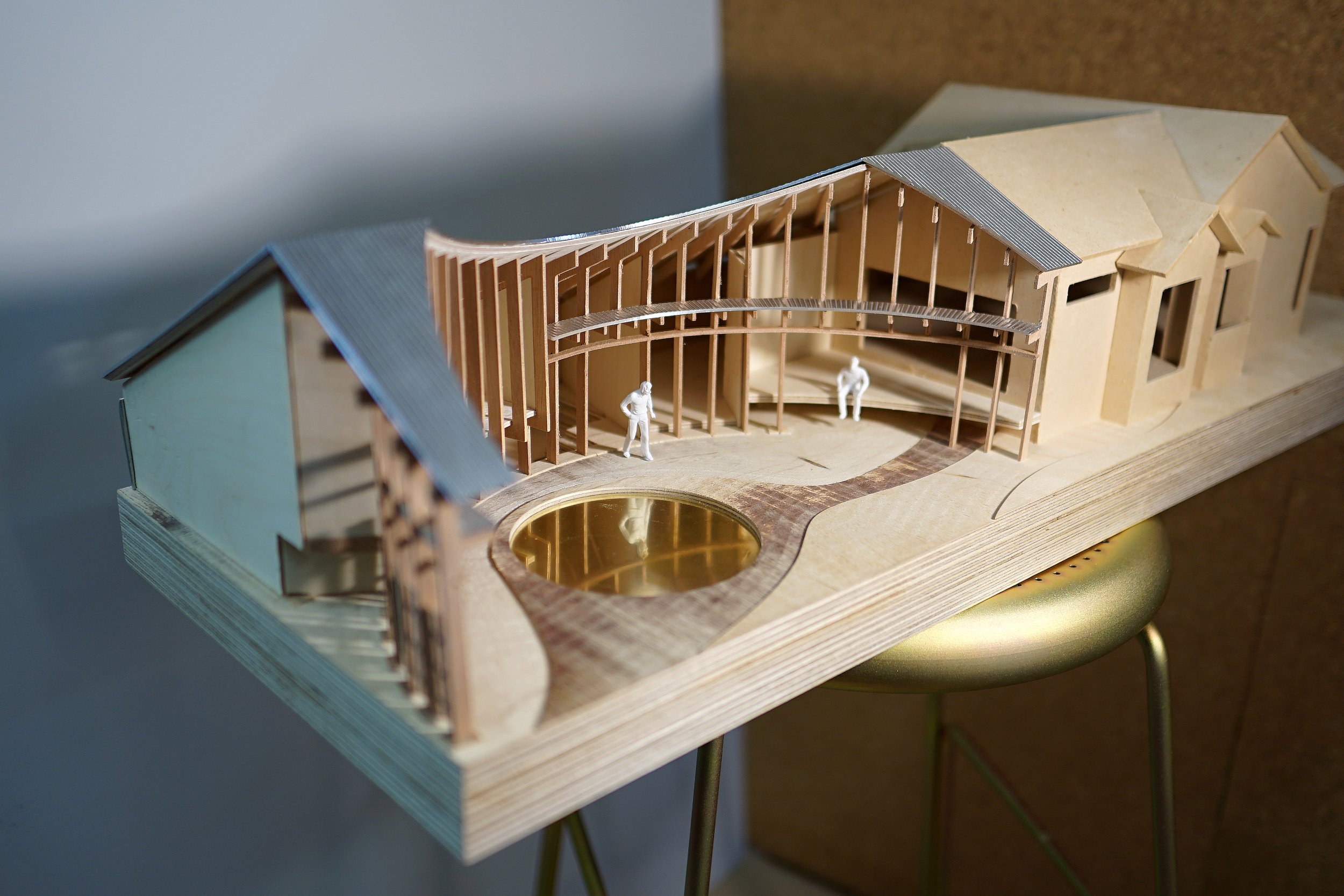

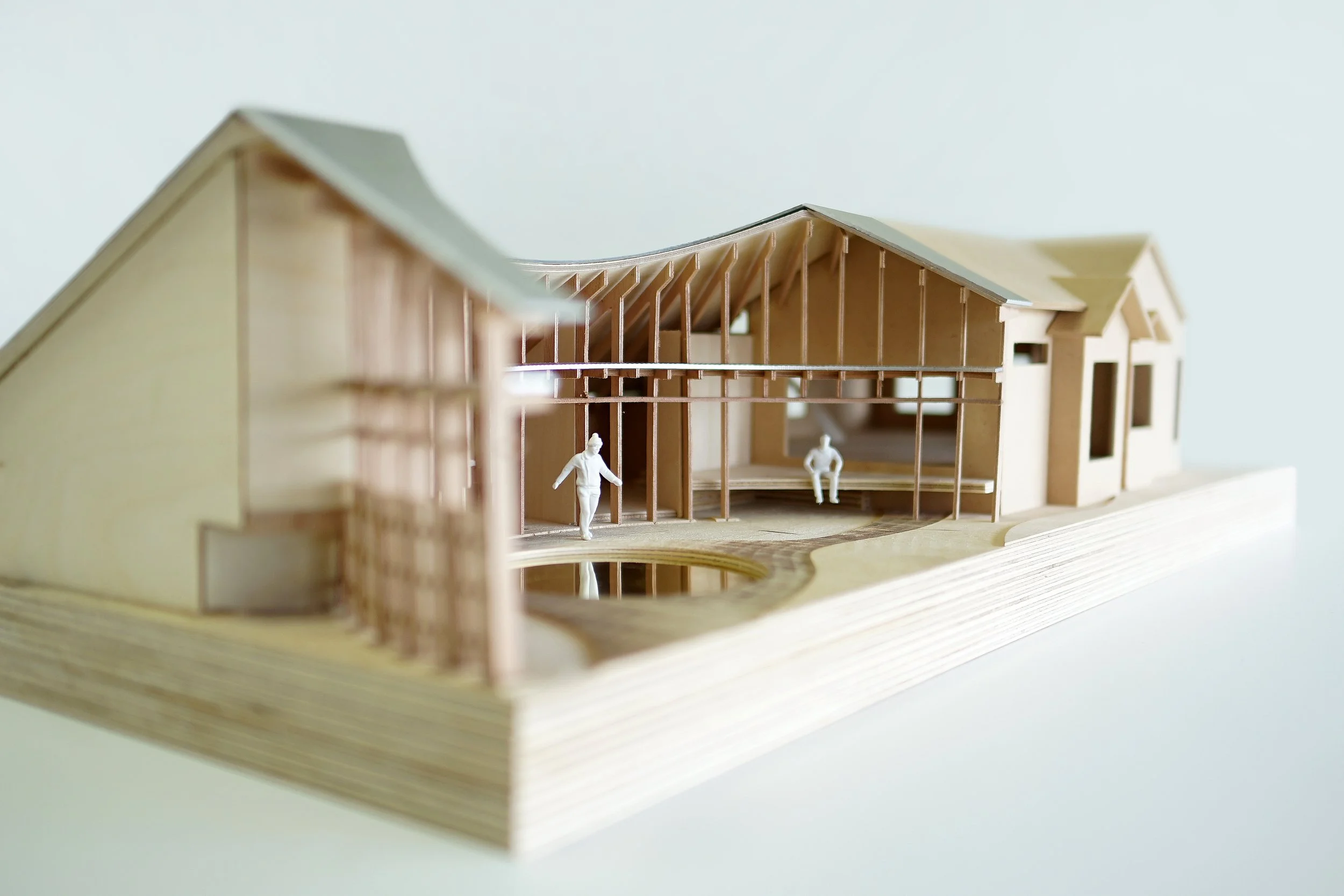

The strategy extends the original roofline to the rear boundary, establishing the section of the new dwelling. A cylindrical volume is then subtracted, not only to form a central garden, but to maximise usable landscape while minimising the length of new façade. This reflects both the clients’ priorities and a pragmatic understanding that façade is typically the most expensive component of construction.

The remaining figure defines the new dwelling, reorienting both buildings toward a shared garden and central pond, shifting the primary outlook from west to north. The project becomes a mediation between landscape and building, balancing spatial generosity with economy.

The new structure is partially sunken, allowing a first-floor bedroom within the height of the existing house. This approach also enabled agreement with the adjoining neighbour to extend the boundary wall beyond ResCode limits, with reduced height mitigating amenity impacts.

A verandah and master bedroom establish a visual and physical link between old and new, while maintaining the independence of the secondary dwelling.

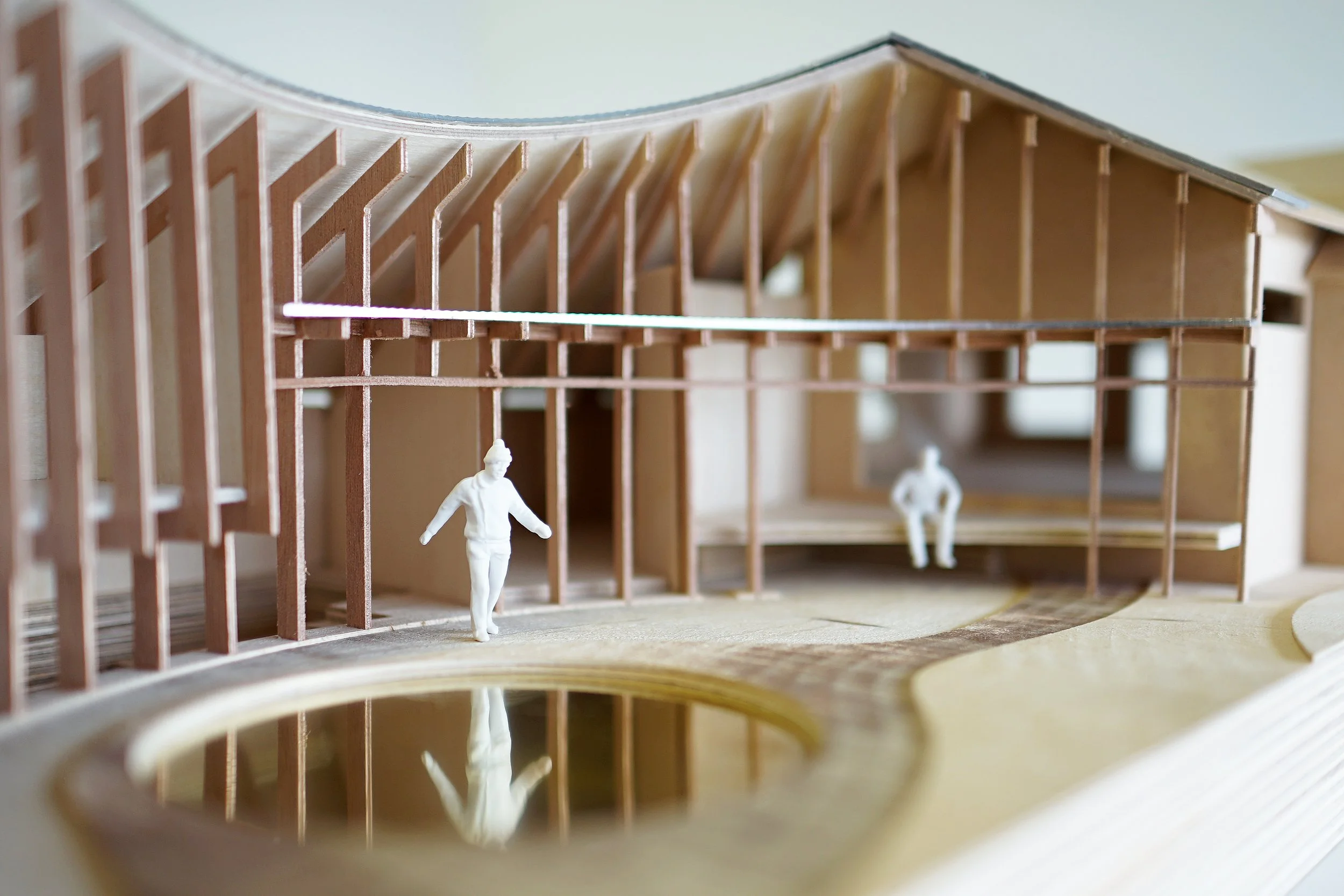

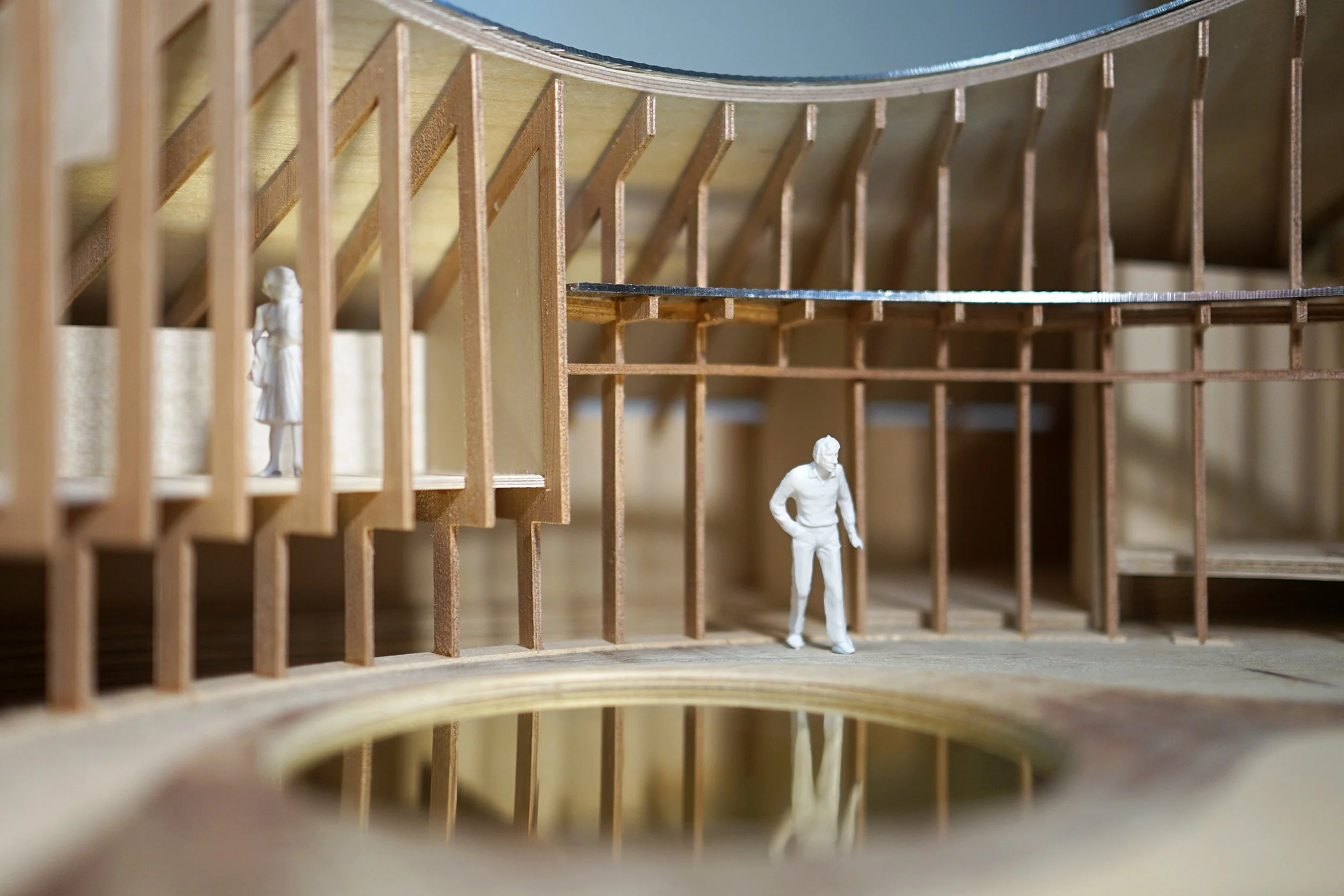

Working within a modest budget, the project adopts a direct material approach. Blockwork and exposed LVLs form the primary structure, extending to structural window frames. The stair and bedroom floor are constructed from exposed glulam beams, treated with lye and natural oil. Lightweight walls are lined in painted OSB, with strawboard ceilings throughout.

Roof and external walls are clad in continuous sheets of galvanised Custom Orb, folded by Flowform, reinforcing the clarity and continuity of the form.

The result is a specific response to a specific brief, where cost, landscape and form are resolved as a single, interdependent system.

  • HOUSE

  • CONCEPT

  • WURUNDJERI COUNTRY | BRUNSWICK, VICTORIA

  • STRUCTURAL ENGINEER | CO-STRUCT
